View Point
An industrial mobile computer delivering performance and durability even in cold or high-traffic environments.
Users can choose between the 2D Imager SE4710 and the Smart Focus SE5500 barcode scanners for flexible configuration.The device offers a 4,100mAh standard battery and an optional 6,150mAh battery, and with 4G connectivity,
it ensures real-time data transmission and stable connections even in field environments without Wi-Fi.
the F (Frozen) model, designed for cold environments such as frozen warehouses,
provides reliable operation in extreme temperatures ranging from -30°C to 60°C, making it a robust mobile solution.
Highlights
-
Flexible Scanner Options

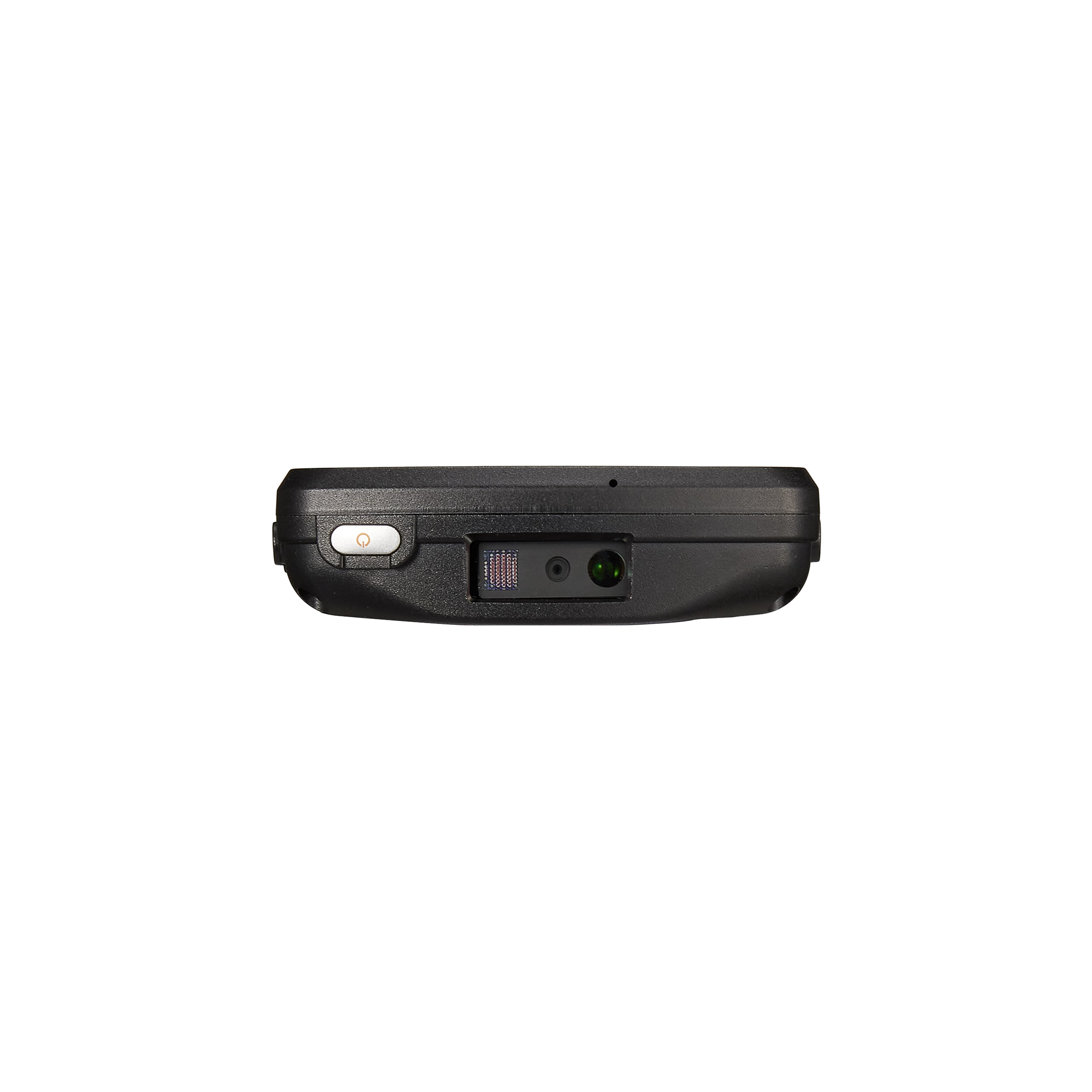

Users can choose between Zebra’s 2D Imager SE4710 and the SE5500 barcode scanner with Smart Focus functionality. Both scanners support fast and accurate 1D and 2D barcode recognition. The SE5500, in particular, can scan from as close as 5.6 cm up to 14 meters, enabling quick and precise barcode capture even in challenging or low-visibility environments, maximizing work efficiency. -
Support for Stable and Efficient Communication
With support for WLAN, WWAN, and WPAN, the device enables real-time data transmission and reliable connectivity even in field environments without Wi-Fi. Featuring 4G support along with 1 Mini SIM and 1 eSIM, it ensures fast and accurate task execution. -
Battery Options Tailored to User Needs
Users can choose between the standard 4,100mAh battery and the optional high-capacity 6,150mAh battery based on their working environment. The 6,150mAh battery supports up to 15 hours of continuous operation without replacement, and with hot-swap capability, tasks can continue uninterrupted even if the device is powered off, without the need for rebooting. -
F (Frozen) Model Specialized for Cold Environments
The F (Frozen) model is designed for low-temperature environments, operating reliably in conditions ranging from -30°C to 60°C. It can also be safely stored in extreme temperatures from -40°C to 80°C, demonstrating exceptional durability. Equipped with a battery optimized for cold conditions, it ensures stable performance and uninterrupted workflow even in harsh, freezing environments. -
5-inch Display with Comfortable One-Handed Grip and Clear Visibility
Featuring a 5-inch HD display, it offers a wide viewing area and sharp visuals to enhance work efficiency. Its smartphone-like size provides a comfortable one-handed grip, delivering excellent portability and ease of operation. -
HDMI Support for Extended Desktop Use
With an HDMI cradle, the device can be connected to a desktop monitor, allowing users to view and manage data more conveniently on a larger screen. This enables the mobile device to function like a desktop workstation in offices or remote work locations. -
Clear Image and Video Capture

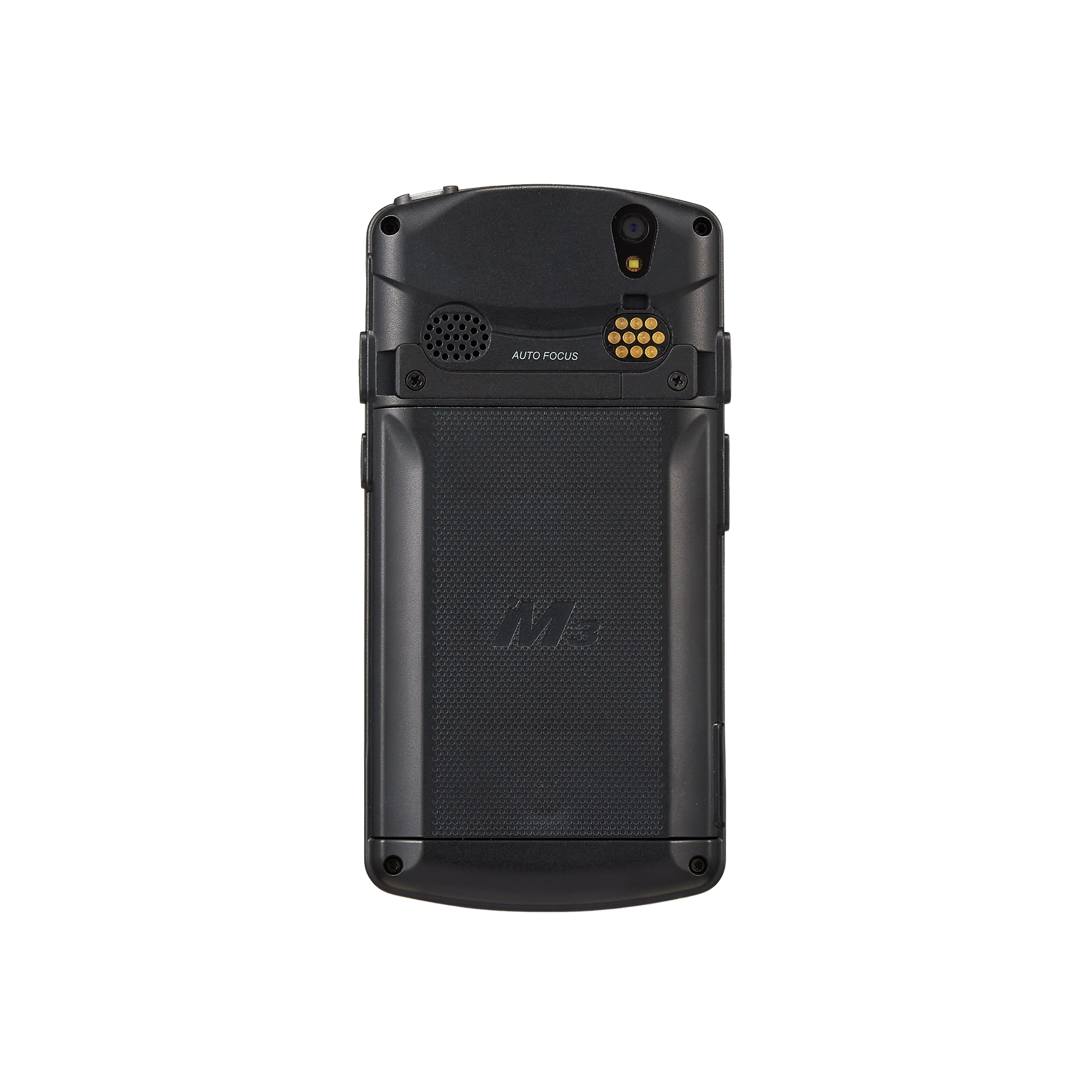

Equipped with a 5MP front camera and a 16MP rear camera, the device features PDAF technology, which compares multiple images to achieve fast and accurate focus. This ensures clear image and video capture in any environment.
Specification
| Size | ⓦ 76.4 x ⓗ 154.6 x ⓓ 22 mm |
|---|---|
| Weight | 2D Imager, Standard Battery: 266g 2D Imager, Extended Battery: 309g Smart Focus, Standard Battery: 268g Smart Focus, Extended Battery: 311.6g |
| Display | 5 Inch HD |
| Memory | 4/64 GB |
| CPU | 2.0 GHz Octa-core |
| Operating System | Android 11 to 14 |
| Data Capture | 2D Imager - SE4710 Smart Focus - SE5500 |
| WWAN | Support VoLTE LTE FDD: 800/850/900/1800/2100/2600 (1/3/5/7/8/20) LTE TDD: 2600/2300/2500 (38/40/41) UMTS/HSDPA/HSPA+:850/900/2100/(1/5/8); GSM/GPRS/EDGE:850/900/1800 (3/5/8); |
| WLAN | IEEE 802.11 a/b/g/n/ac/d/e/h/i/k/r/w, ax-ready ac Wave2 |
| Battery | 4100mAh(Standard), 6150mAh(Option) Hot-Swap Support |
| Tumble Test | 1M/1,000times (With Boots), 0.5M/2,000times (Without Boots) |
| Drop Test | 1.5M (With Boots), 1.2M (Without Boots) drops to concrete across the operating temperature range per MIL-STD-810G |
| Sealing | IP65 |
