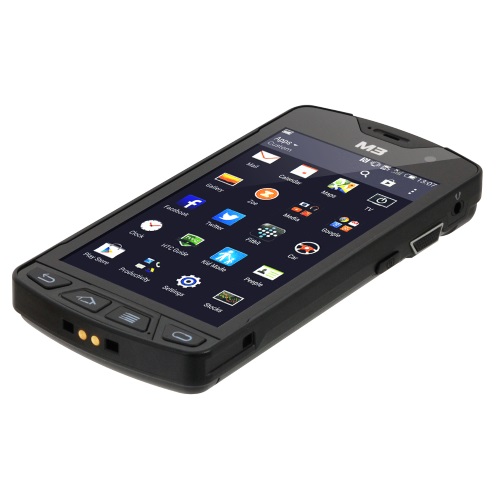

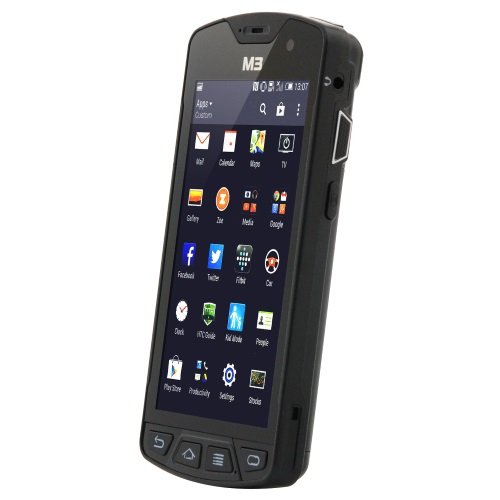

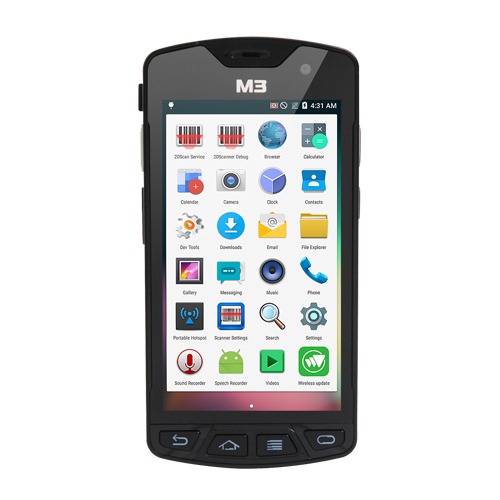

M3 SM10LTE



M3 SM10 LTE




close
logo
close
- M3 SM10LTE
- Rugged full touch screen with Android/Windows10 Iot Mobile Enterprise
-
- - 1.3GHz Quadcore CPU
- Dual OS : Android 5.1 Lollipop or Android 6.0 Mashmallow / Windows 10 Iot Mobile Enterprise
- Extended Battery 6,150mAh
- 1D / 2D scanner
- 5" full touch HD TFT LCD (Gorilla Glass 3)
- IEEE 802.11 a/b/g/n
- IP65 Sealing(with protective boot), 1.8m Drop
- - 1.3GHz Quadcore CPU
-
tabbutton1
-
- 1.3GHz Quadcore
- Powerful CPU speed with "High-Tier" guarantees faster graphic process and memory access.
-
- 5inch full touch HD TFT LCD (Gorilla Glass 3)
- Legible through 5 inch full-touch screen, easy to use even with wearing gloves, resistant to scratch and rugged applying Gorilla Glass 3.
-
- 1D, 2D Scanner
- Superior scanner/imager application provides real-time data capture and automatic data processing so that you can expect flexibility of work and cost efficiency.
-

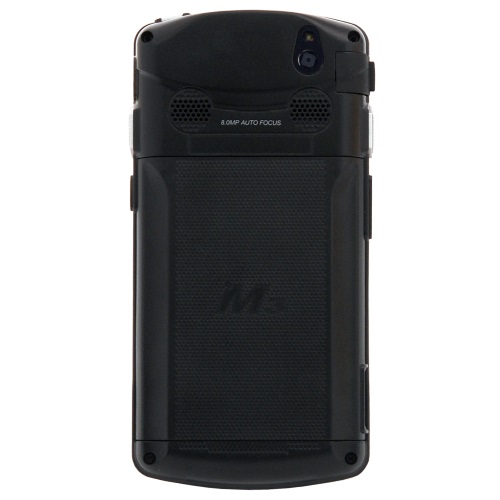

- 8.0M (rear) / 5.0M (front) auto focus camera
- High resolution and auto focused functionality capture clear images of product and/or documentation.
-
- Battery (Li-Ion 3.8V 6,150mAh / 4,100mAh)
- M3 SM10 battery provides accurate remaining battery capacity so that the user can efficiently plan the usage of the PDA. Also, its large capacity is suitable for long time shifts.
-
- Slim & Light
- M3 SM10 is a slim and light but rugged PDA with optional RFID reader. It can be used for ticketing and/or asset management wherever the mobile device is needed.
-
- Endurance for temperature
- M3 SM10 can be operated within -20 degree to 60 degree and its storage temperature is -30 degree to 80 degree. It will guarantee the normal function at any temperature of working environment.
-
- 1.8m drop / IP65 Sealing (with protective boot)
- M3 SM10 is suitable to use in a tough environment withstands drops from 1.8m and protects against dust and water.
-
Drop rate with Standard Battery 4,100 mAh 1.8m with Boot
Drop rate with Extended Battery 6,150 mAh 1.8m with Boot
-
- User-centred design
- The user-centred design combines with great performance to deliver into the most harsh and hostile work environment's.
-
-
tabbutton1
- Physical Characteristics
-
DIMENSION (W x H x D) Millimeters 76.4 x 154.8 x 21.6 Inches 3 x 6.09 x 0.85 WEIGHT (incl. battery) Grams 280 (including st`d battery) Ounces 11.8 DISPLAY Size 5`" Type HD TFT LCD Pixels 720 x 1280 BATTERY Type Standard / Extended Cell Li-ion Power 3.8 V 4,100mAh / 3.8 V 6,150mAh - Performance Characteristics
-
MULTI-PROCESSOR CPU 1.3 GHz Quadcore Radio OS Android 5.1 Lollipop / Android 6.0 Mashmallow + Windows 10 Iot Mobile Enterprise MEMORY RAM 2GB ROM 16GB Card Slot Micro SD (up to 32 GB) USB INTERFACE Host Client Micro USB - User Environment
-
TEMPERATURE Operating -20 to 60 ℃ Storing -30 to 80 ℃ HUMIDITY 95% non-condensing Tumble Test Drop Test 1.2m / 1.8 m (with protective boot) IP Rating IP65 (with protective boot) - Wireless Radio Options
-
WWAN 2G Network
(GSM/GPRS/EDGE)850/900/1800/1900 MHz 3G Network
(UMTS/HSPA+)850/900/2100 MHz 4G Network
(FDD LTE)800/850/900/1800/2100/2600 MHz WLAN Standard IEEE 802.11 Bandwidth a/b/g/n Security BLUETOOTH Class Class II Version V4.0 LE RFID Frequency Standard GPS A-GPS, GLONASS, BEIDOU - General Options
-
SCANNER 1D O 2D O Long range CAMERA Pixels 5.0M Pixels (Front)
8.0M Pixels (Rear)Focus Auto Focus KEYPAD Alpha-Numeric Qwerty Azerty
* The contents of this specification were made based on the "current state" of the product, and this specification may change without notice.
-
tabbutton1
- Product Manual
-
-
Quick Manual
- Total Quick Manual (EN) [35.6MB]
-
User Manual
-
Quick Manual
- Marketing Material
-
- Catalog of all products (EN) [9.1MB]
- SM10 LTE Brochure (EN) [1.1MB]
- M3 SM10 Accessories Images (EN) [19.7MB]
- M3 SM10 Images (KR) [4.4MB]
- Certification
-
- M3 SM10 CE Certification (2015) (EN) [1.2MB]
- M3 SM10 Cradle CE Certification (2015) (EN) [189.3KB]
- MIL-STD-810G certification _ Vibration and Drop test (EN) [5.9MB]
- MIL-STD-810G Certification_Temperature shock test (EN) [4.1MB]
-
